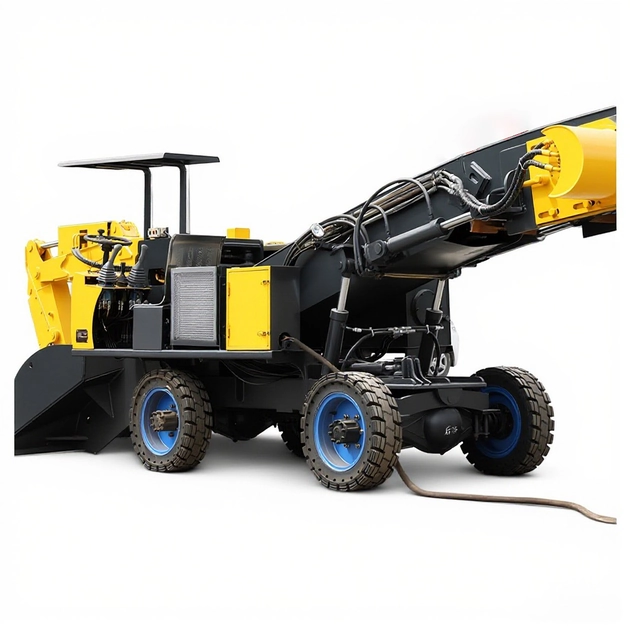

Explosion Proof Wheel Mucking Loader For Coal Mine
+86-133-8866-8188
The Wheel mucking Loader stands as a beacon of innovation in underground excavation, combining power, precision, and adaptability. Its four-wheel-drive system delivers formidable driving force,……
Product Details
The Wheel mucking Loader stands as a beacon of innovation in underground excavation, combining power, precision, and adaptability. Its four-wheel-drive system delivers formidable driving force, enabling efficient rock loading across wide sections. The machine’s comprehensive coverage ensures complete debris removal, eliminating blind spots and manual cleanup tasks.
By embracing chain-driven material conveyance, the loader addresses the inefficiencies of traditional belt systems.
Modular components enable rapid assembly, minimizing installation time in underground settings. Operators benefit from the machine’s agile controls and steady performance, critical for precision tasks. By integrating these features, the loader sets new benchmarks for efficiency and innovation in underground excavation.
| Explosion Proof Wheel Mucking Loader For Coal Mine | |||
| Project | Unit | ZWY-60/22T | ZWY-80/30T |
| Weight | T | 6.2 | 8.6 |
| Overall dimension(L*W*H） | mm | 5800×1650×1700 | 5800×1700×1850 |
| Loading Capacity | m³/h | ≈60 | ≈80 |
| Min turning radius | mm | 3600 | 3800 |
| Ground Clearance | mm | 200 | 210 |
| Nominal working pressure | mpa | 16/25 | 16/25 |
| Traveling speed | km/h | High：4.5 Low：2 | High：4.5 Low：2 |
| Climbing abitily | ° | ≤18（Adapt to the ground） | ≤18（Adapt to the ground） |
| Max size materials can pass through（L*W*H） | mm | 810*580*500 | 810*680*500 |
| Applied tunnel gradient | ° | ≤10（Adapt to the ground） | ≤13（Adapt to the ground） |
| Applicable section(W*H) | m | ≥2.2×2.2 | ≥2.5×2.5 |
| Motor Power | kw | 18.5/22 | 22/30 |
| Excavating Width | mm | ≥4200 | ≥4800 |
| Excavating Distance | mm | ≥1600 | ≥1800 |
| Excavating Height | mm | 1800 - 2700 | 1800 - 2700 |
| Excavating Depth | mm | ≥450 | ≥500 |
| Uninstall Height | mm | 1250-1750（Can be heightened） | 1350-1750（Can be heightened） |
| Minimum Loading Height | mm | 1200（Variable） | 1400（Variable） |
| Max rotation angle | ° | ±45 | ±45 |
| Uninstall Distance | mm | 1600（Can be lengthened) | 1700（Can be lengthened) |
