This machine uses crawler to travel, with large driving force, wide pick-up range, can be full-section rock loading, no dead corner, no manual assistance to clean the working surface. Guarantee……
Product Details

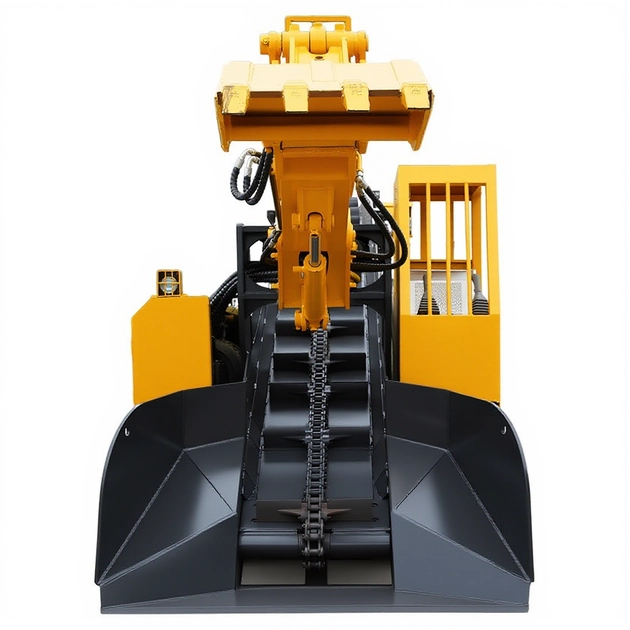

This machine uses crawler to travel, with large driving force, wide pick-up range, can be full-section rock loading, no dead corner, no manual assistance to clean the working surface. Guaranteed optimal performance in a wide range of harsh conditions.
This machine adopts imported hydraulic pilot lever system, combined with high-efficiency hydraulic valve, to accelerate the speed at which the robotic arm moves and conveying speed, to achieve perfect composite operation performance.
| Project | Unit | ZWY - 80/30L |
| Weight | T | 8.8/10.8 |
| Overall dimension(L*W*H) | mm | 6100×1800×1800 |
| Loading Capacity | m³/h | ≈80 |
| Ground clearance | mm | 260（Can be heightened） |
| Nominal working pressure | mpa | 25/35.5 |
| Traveling Speed | km/h | 2.15/3.8 |
| Motor Power | Kw | 30/37 |
| Max.size materials can pass through(L*W*H) | mm | 650*600*650 |
| Applicable section(W*H) | m | ≥2.3*2.3 |
| The inside track width | mm | 1000（Can be widened） |
| Applied tuunel gradient | ° | ≤30（Adapt to the ground） |
| Climbing ability | ° | ≤32（Adapt to the ground) |
| Transport form of scraper | Double-chain and dual-drive Single-chain and single-drive | |
| Excavating Width | mm | ≥4800 |
| Excavating Distance | mm | ≥1700 |
| Excavating Depth | mm | ≥500 |
| Uninstall Height | mm | 1646（Can be heightened） |
| Uninstall Distance | mm | 1600（Can be lengthened） |
| Max.rotation angle | ° | ±50 |
| Excavating Height | mm | ≥2800 |
| Minimum Loading Height | mm | 1470（Variable） |
