Crawler Muck Loader mainly used for the loading of various rare ore blocks such as mine caverns, tunnels, hydropower, culverts, national defense projects and soon in sloped roadways. The main a……
Product Details

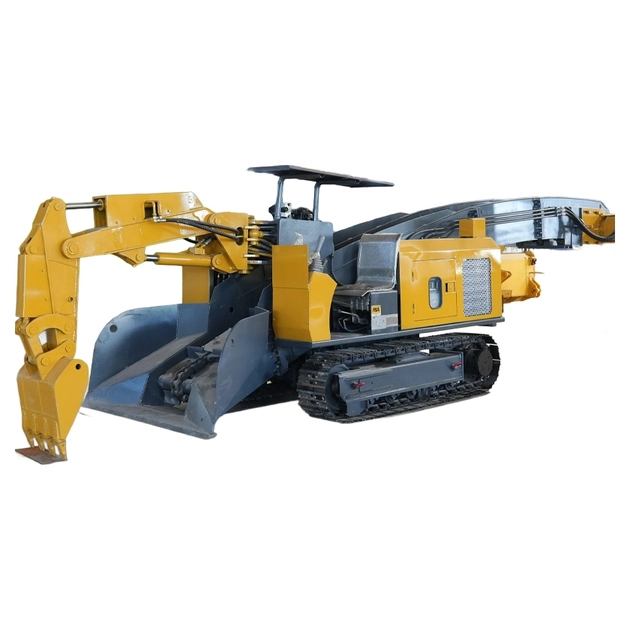

Crawler Muck Loader mainly used for the loading of various rare ore blocks such as mine caverns, tunnels, hydropower, culverts, national defense projects and soon in sloped roadways. The main accessories adopt international famous brand products, and the product performance has reached the advanced level of similar domestic products.
This machine uses crawler to travel, with large driving force, wide pick-up range, can be full-section rock loading, no dead corner, no manual assistance to clean the working surface. Guaranteed optimal performance in a wide range of harsh conditions.
| Project | Unit | ZWY - 80/30L | ZWY - 120/55L | ZWY - 150/55L | ZWY- 180/75L | |
| Weight | T | 8.8/10.8 | 10.8/15.8 | 13.2/16.8 | 18.6/20.5 | |
| Overall dimension(L*W*H) | mm | 6100×1800×1800 | 7800×1900×2200 | 8100×2000×2300 | 8250×2440×2225 | |
| Loading Capacity | m³/h | ≈80 | ≈120 | ≈150 | ≈180 | |
| Ground clearance | mm | 260（Can be heightened） | 300（Can be heightened） | 320（Can be heightened） | 350（Can be heightened） | |
| Nominal working pressure | mpa | 25/35.5 | 25/35.5 | 28/35.5 | 28/35.5 | |
| Traveling Speed | km/h | 2.15/3.8 | 2.15/3.8 | 2.15/3.8 | 2.15/3.8 | |
| Motor Power | Kw | 30/37 | 37/45 | 45/55 | 55/75 | |
| Max.size materials can pass through(L*W*H) | mm | 650*600*650 | 650*700*780 | 700*780*700 | 800*800*850 | |
| Applicable section(W*H) | m | ≥2.3*2.3 | ≥2.6*2.6 | ≥3.0*3.0 | ≥3.5*3.5 | |
| The inside track width | mm | 1000（Can be widened） | 1215（Can be widened） | 1215（Can be widened） | 1360（Can be widened） | |
| Applied tuunel gradient | ° | ≤30（Adapt to the ground） | ≤30（Adapt to the ground） | ≤30（Adapt to the ground） | ≤30（Adapt to the ground） | |
| Climbing ability | ° | ≤32（Adapt to the ground) | ≤32（Adapt to the ground) | ≤32（Adapt to the ground) | ≤32（Adapt to the ground) | |
| Transport form of scraper | Double-chain and dual-drive Single-chain and single-drive | Double-chain and dual-drive Single-chain and single-drive | Double-chain and dual-drive Single-chain and single-drive | Double-chain and dual-drive Single-chain and single-drive | ||
| Excavating Width | mm | ≥4800 | ≥5300 | ≥5300 | 5900-6870 | |
| Excavating Distance | mm | ≥1700 | ≥1970 | ≥2200 | 2470-2958 | |
| Excavating Depth | mm | ≥500 | ≥550 | ≥700 | ≥620 | |
| Uninstall Height | mm | 1646（Can be heightened） | 1760（Can be heightened） | 1900（Can be heightened） | 2000（Can be heightened） | |
| Uninstall Distance | mm | 1600（Can be lengthened） | 1700（Can be lengthened） | 2900（Can be lengthened） | 3300（Can be lengthened） | |
| Max.rotation angle | ° | ±50 | ±55 | ±55 | ±55 | |
| Excavating Height | mm | ≥2800 | ≥3090 | ≥3300 | ≥3568 | |
| Minimum Loading Height | mm | 1470（Variable） | 1480（Variable） | 1500（Variable） | 1680（Variable） | |
